Product Description

• Brand Name: Countronics

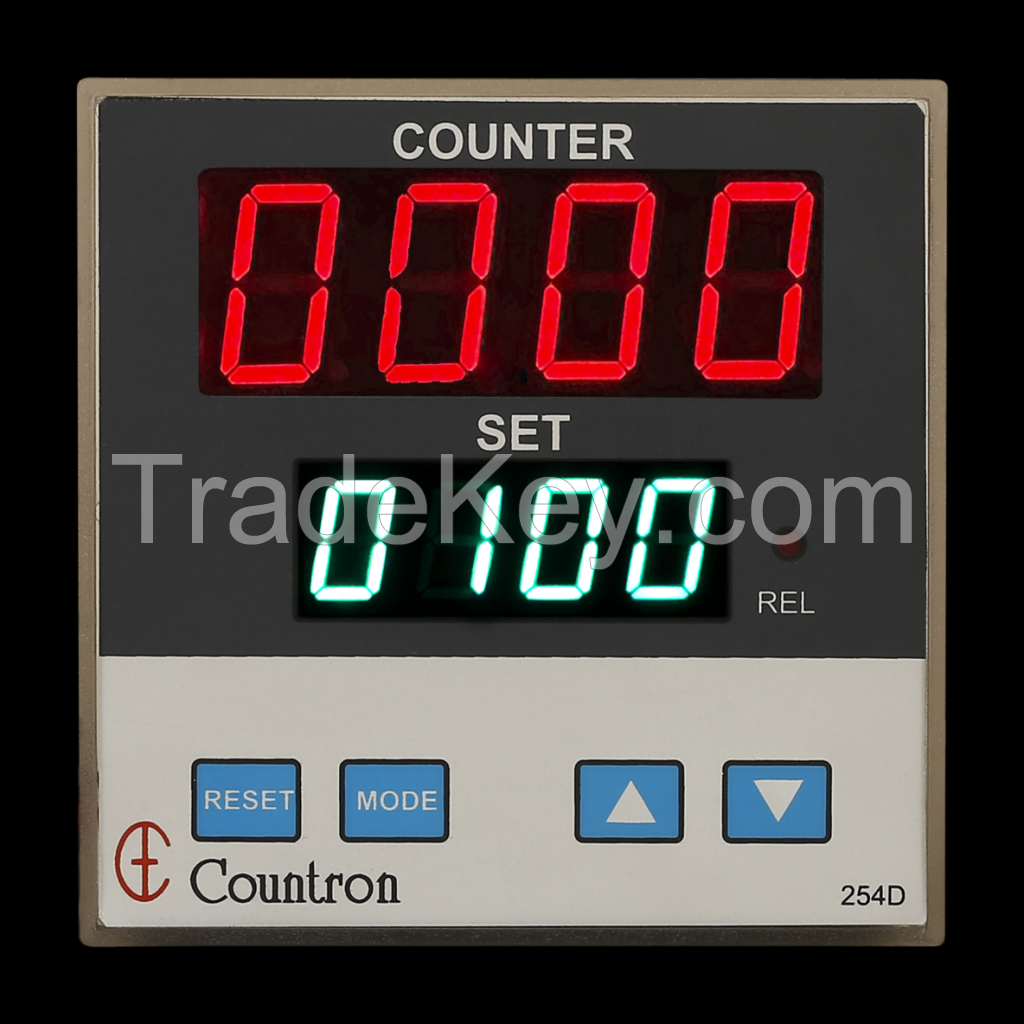

• Model 254D CMOS/LSI Design For High Reliability & Accuracy. Auto & Single Cycle Operation. Counting by Contact, Pulse, Proximity & Photo Sensor Input. 12V/50 mA DC Output for Proximity Detector/Photo Sensor. Built-in Ni-Cd, Rechargeable Battery Backup if required. Specification
   Display : 4 Digit, 7 segment LED display (0.8 height) for Count
                     4 Digit, 7 segment LED display (0.56 height) for Limit
   Range : Maximum Count of 9999
   Set Points : Single set points programmable from 1-9999
   Batch Limit : Batch limit setting from 0 to 999
   Operating Modes : a. Auto Mode (Time Settable) b. Manual Mode (Delay set to Zero)
   Count Inputs : a. Voltage Pulse : 3V to 30V DC amplitude from proximity switch
                             b. Potential free contact from limit switch, relay or micro switch
   Input Frequency : 0 to 1 KHz
   Sensor Supply : 10V DC, short circuit protected
   Multiplying Factor: Programmable from 1-99
   Division Factor : Programmable from 1 to 99
   Reset Input : a. Front Panel b. Remote reset by rear terminals
   Relay Outputs : NO-Pole-NC contact rated at 5Amp @ 230 V AC
   Memory Retention: 10 years
   Configuration Lock: By Password
   Mounting : Panel Mounting
   Size : 96mm x 96mm. Depth 50mm
   Weight : Approx. 375 gms.
   Operating Temp. : 0-50 ̊C
   Humidity : 95% RH














































  Display	: 4 Digit(0.5 inch Char Height Red 7 Seg)
  Range	: 9999
  Size(Front Facia)	: 96 mm x 96 mm OR 72mm x 72 mm
  Count Mode	: UP
  Output	: 1 NO-P-NC Change over Contact 5A/250V AC
  Reset	: Push Button / Contact (Pulse Operation available against Request)
  Output Mode	: Auto Repetitive or Single Cycle
  Power Supply	: 230 V AC +/- 10% or 12 V DC
  Operating Temperature	: 0 - 50°C
  Storage Temperature	: - 10 to + 70°C
